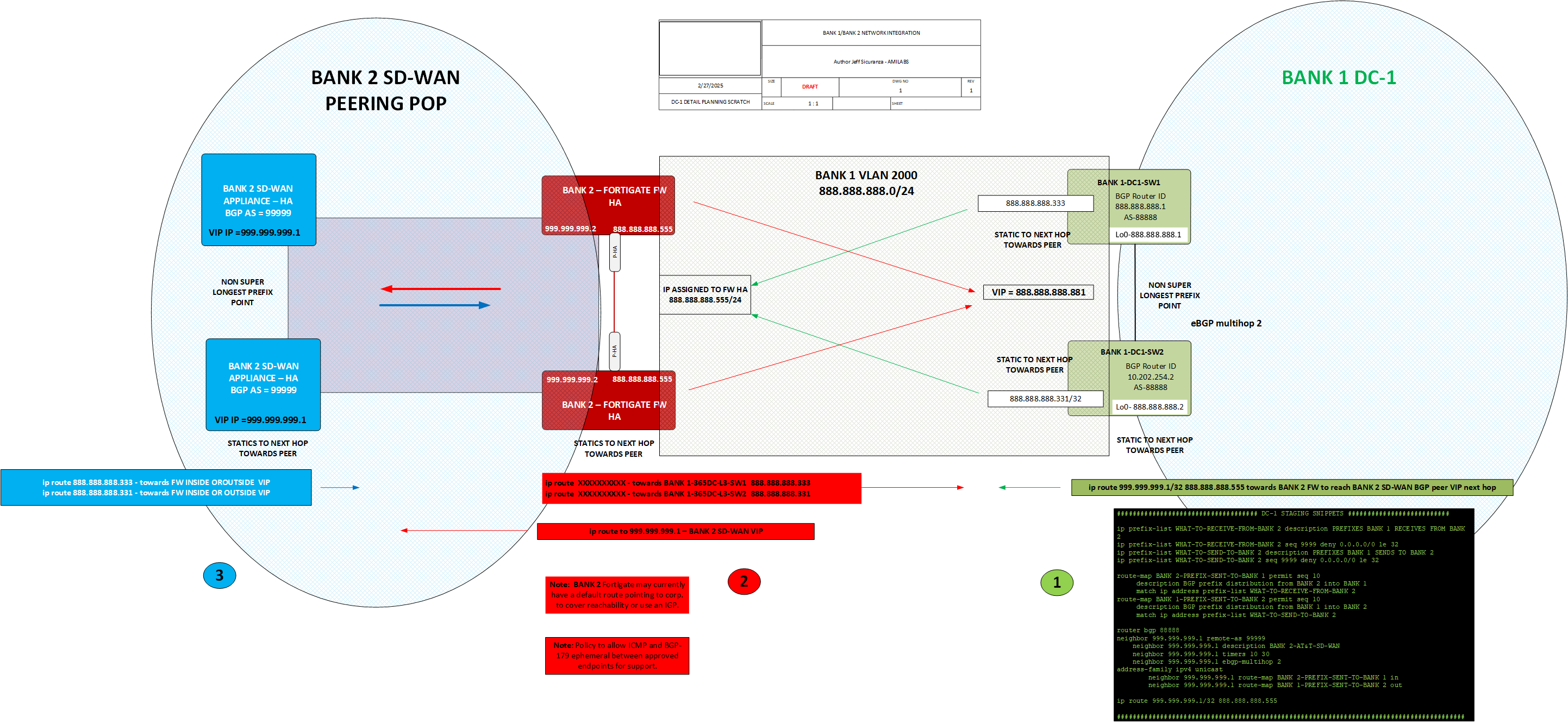

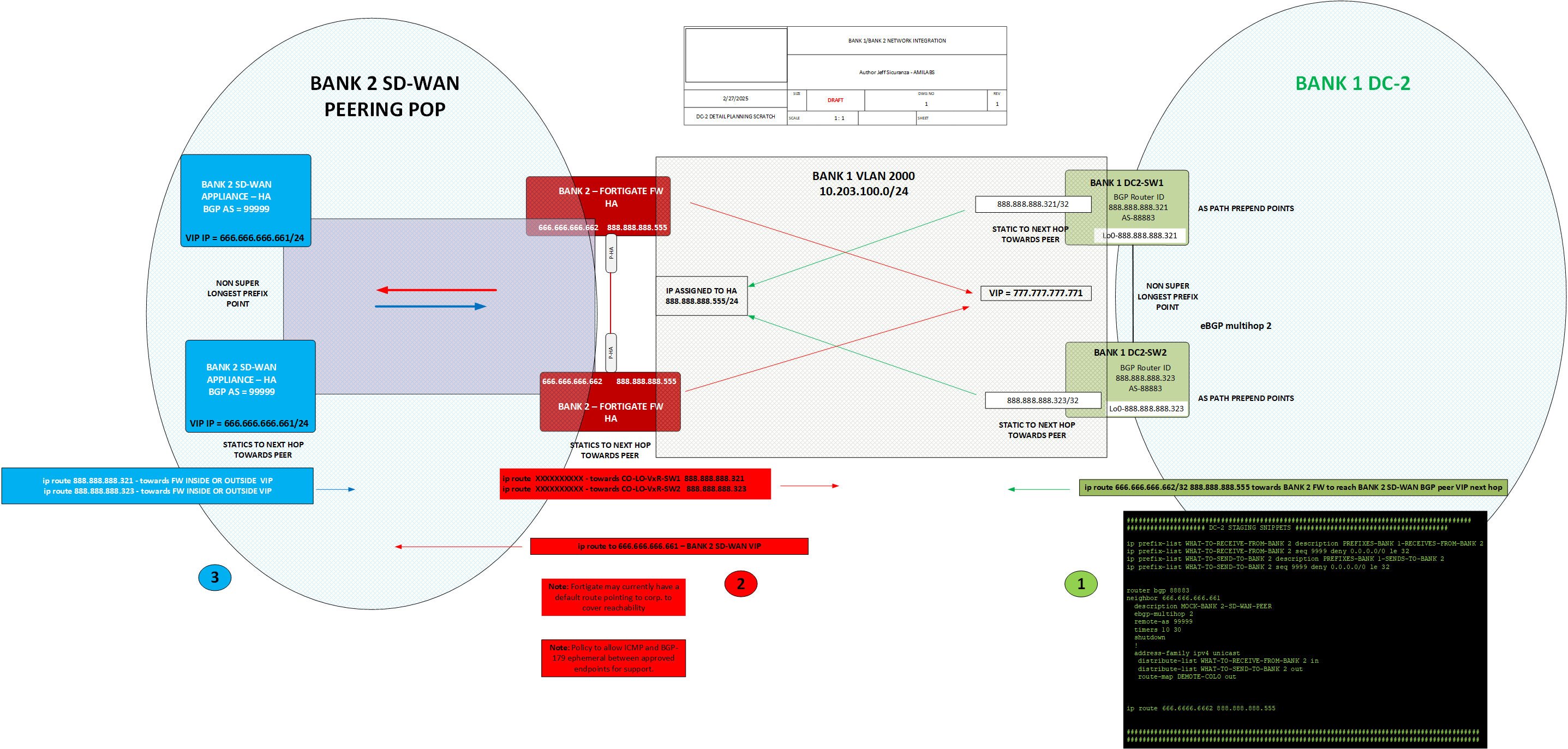

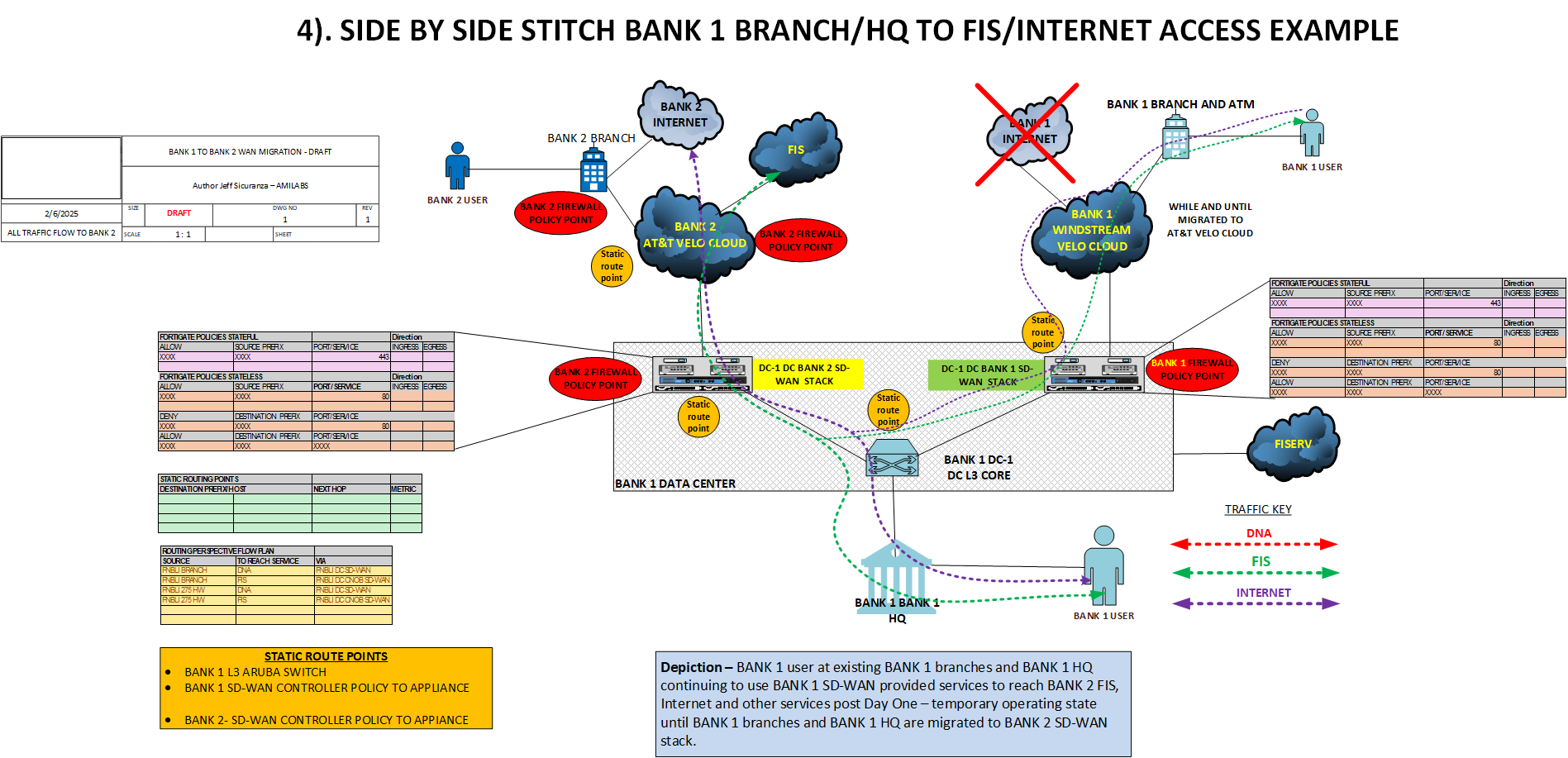

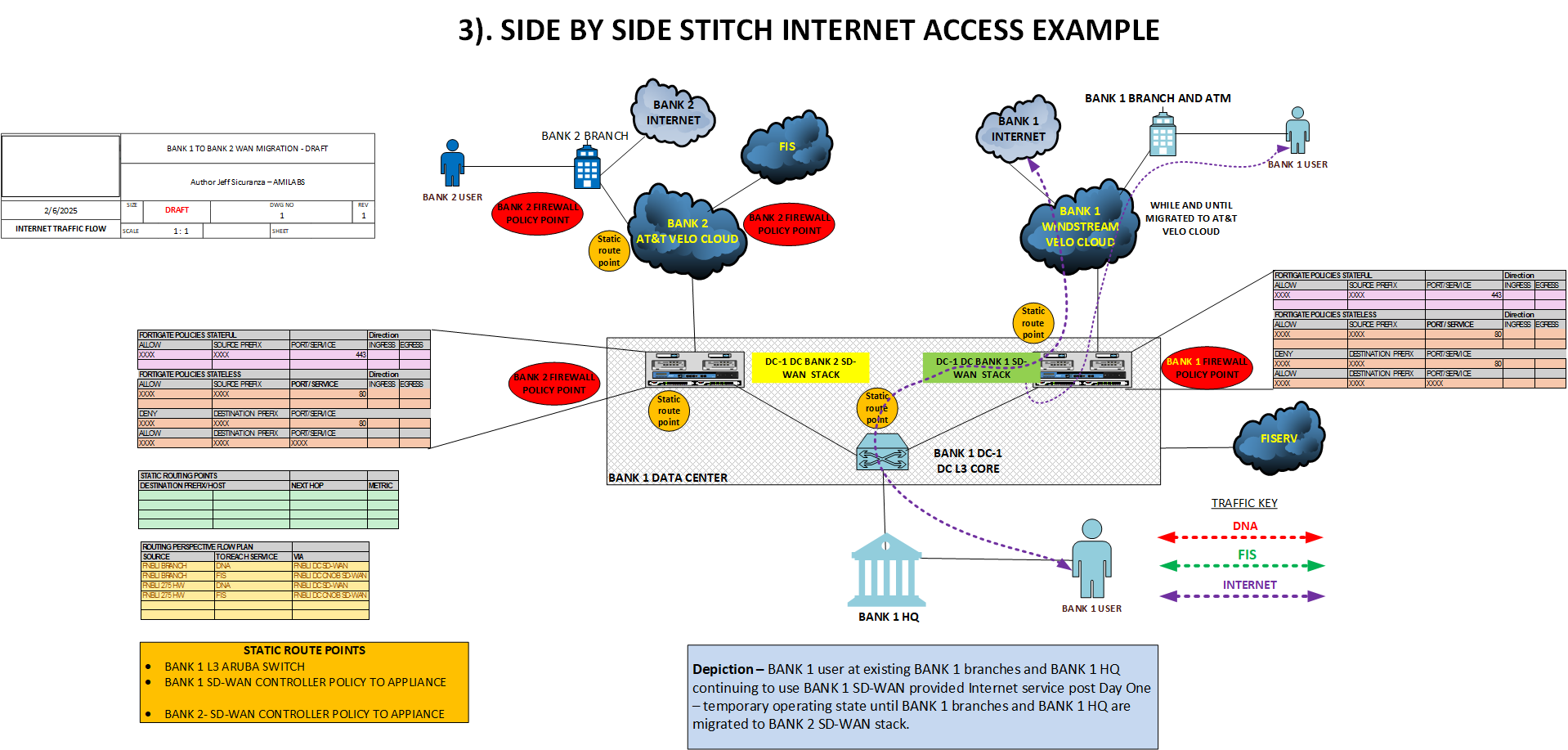

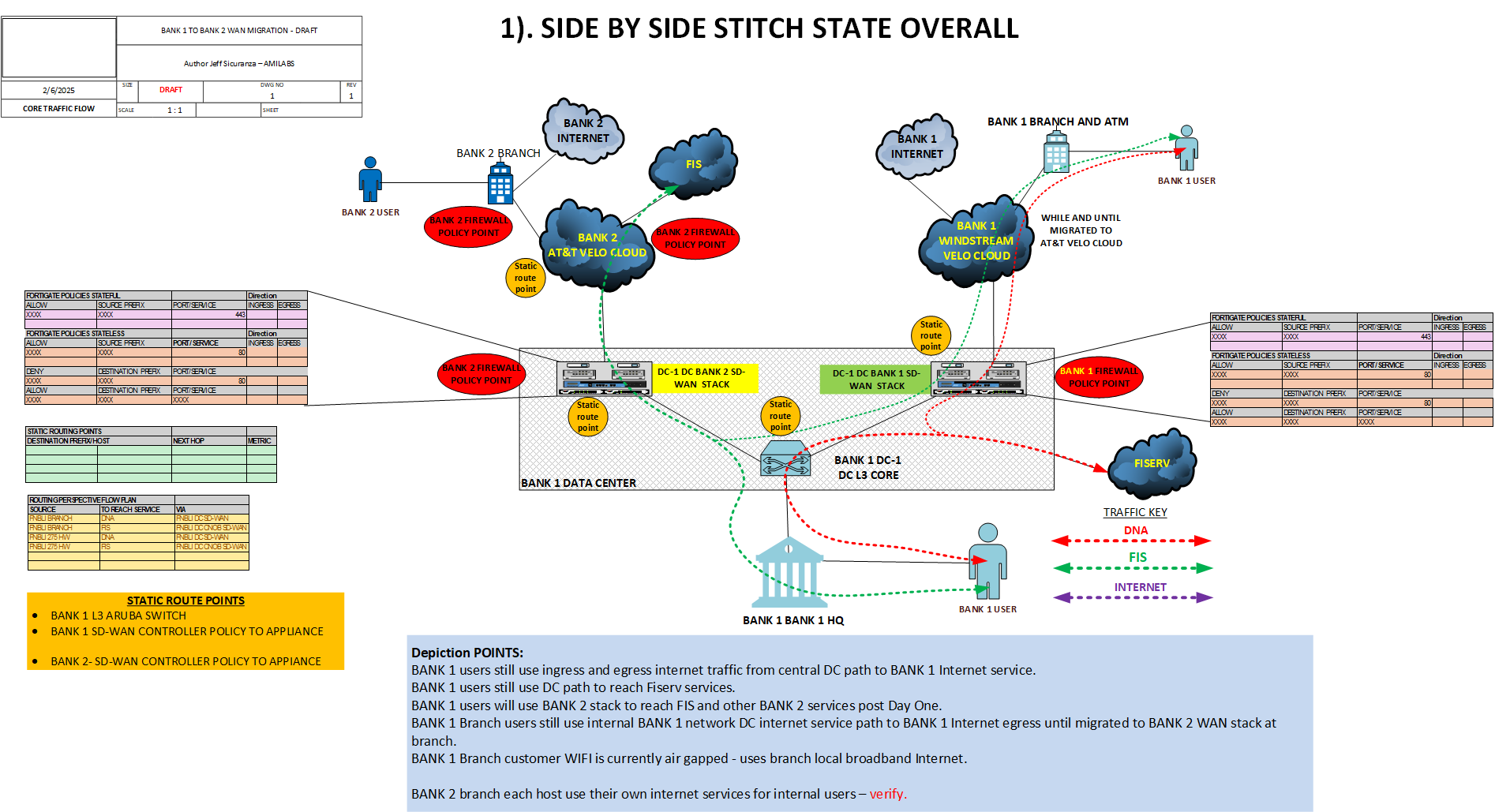

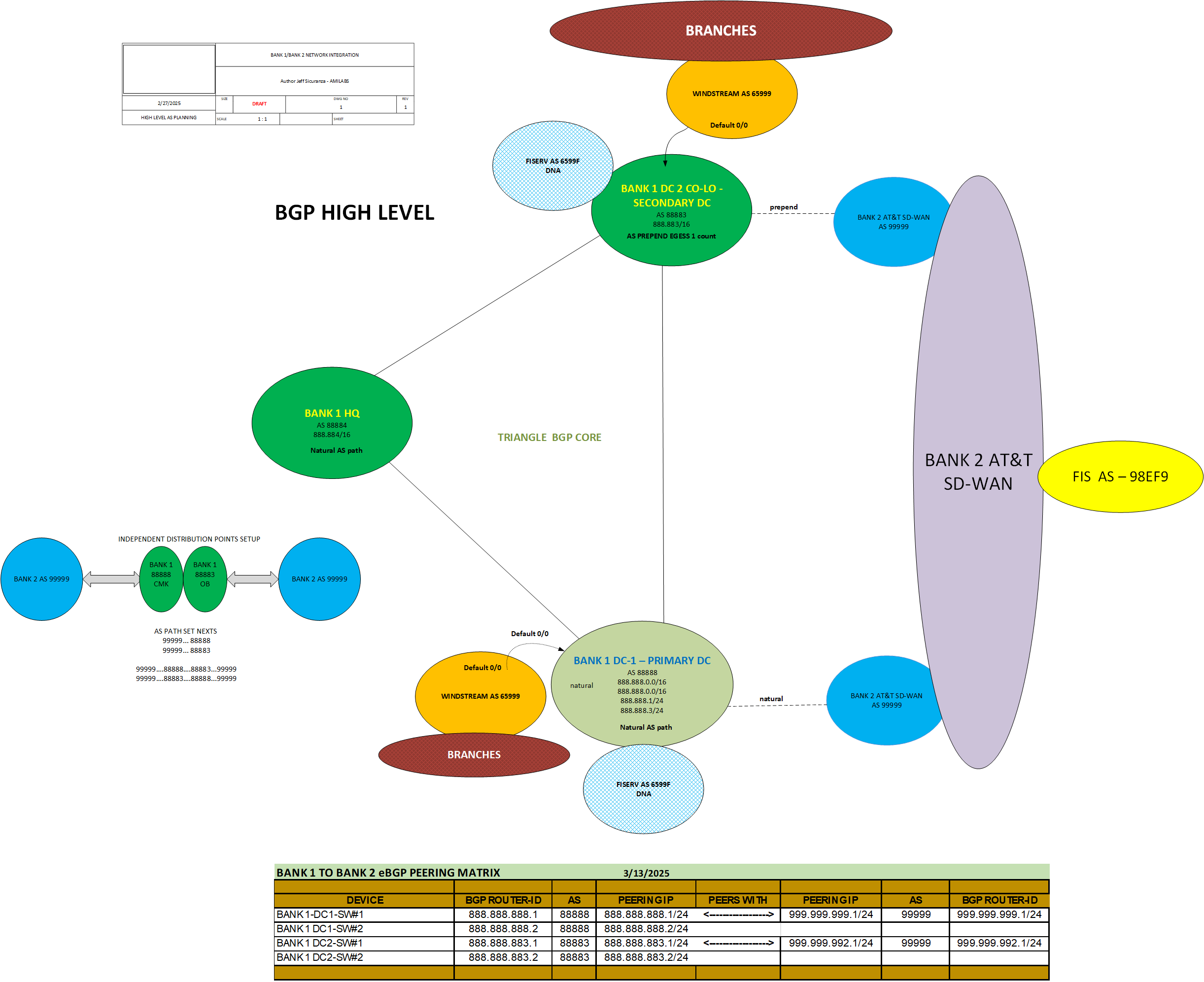

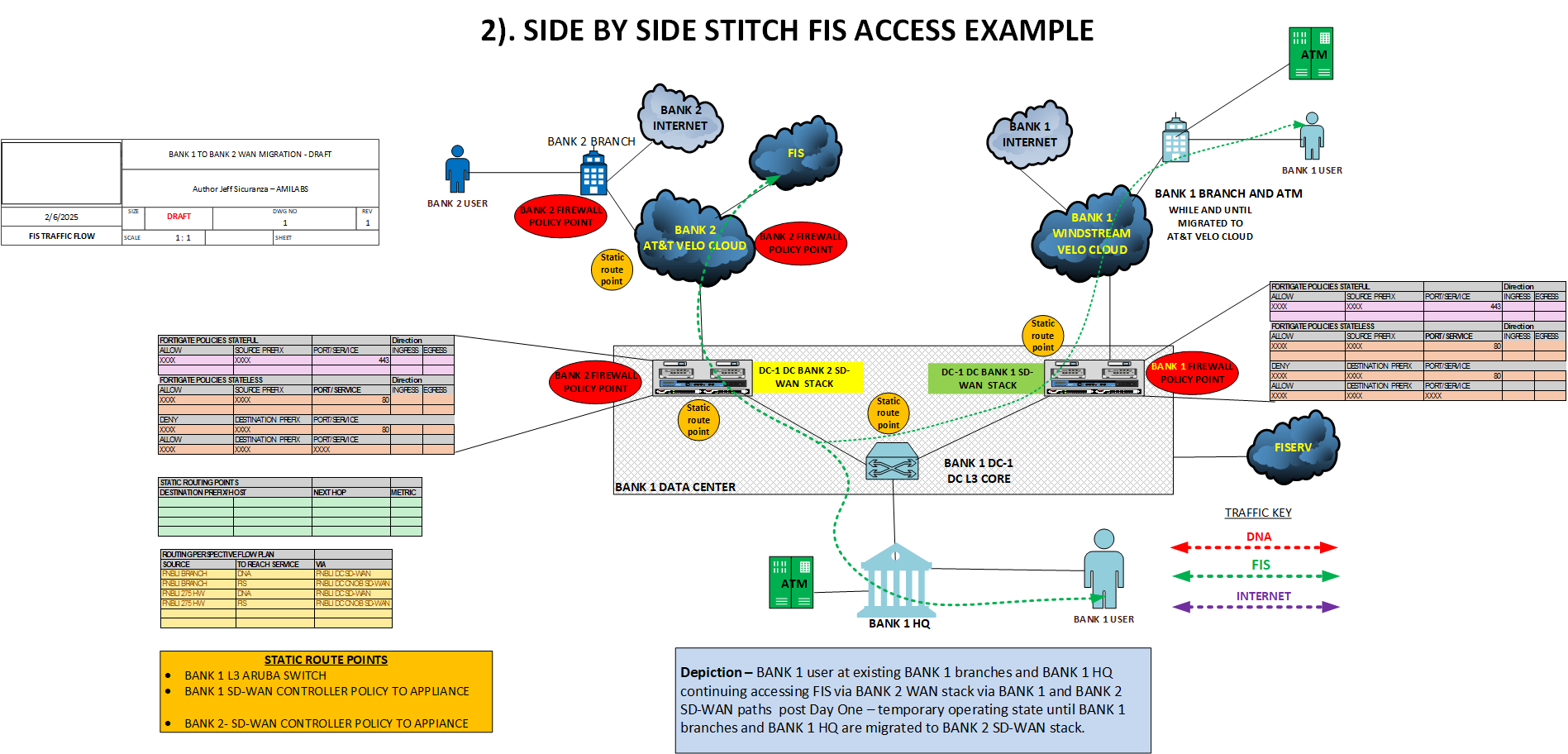

Sample planning documentation of a Long Island Bank's merger with another bank. The diagrams cover interbank BGP peering and traffic flow options that link two bank networks together to support merger and migration activities.
All information has been scrubbed for security purposes and is the property of Applied Methodologies, Inc.
All information has been scrubbed for security purposes and is the property of Applied Methodologies, Inc.
Migration topology approach consideration scratch pad planning diagrams
